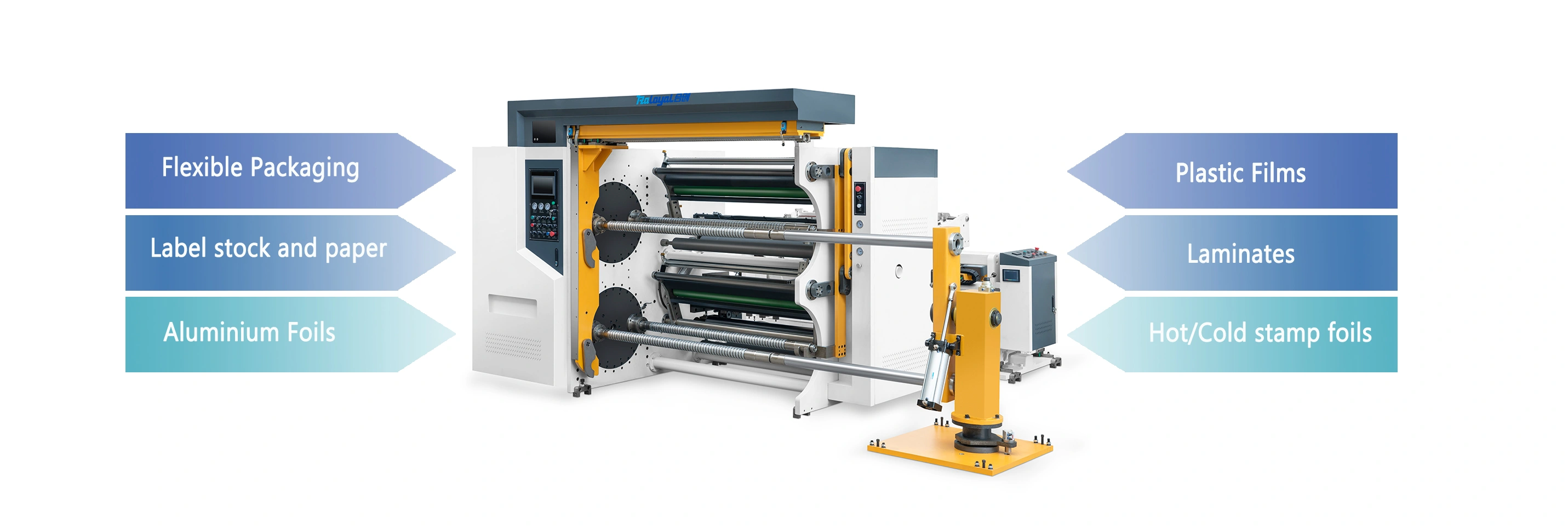

Pro series four-axis turret slitting rewinding machine is Raloyal another innovation, widely used for the soft flexible packing materials (such as PE/PP/PET/BOPP/PVC film), laminated material and paper, adhesive label sticker ,art paper, edge band material etc.
Machine max speed can reach 500m/min.
Equipped with 7 servo motors, to enable the machine slitting, rotating and rewinding precisely. Rewinding diameter even can be up to 800mm! Fully auto blade set, auto loading, 4 shaft turret, auto knife cutting, auto pushing and unloading. all the automation boost the maximum efficiency and minus the downtime for customers!
PRO SERIES Four-Axis Turret Slitting Rewinding Machine is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc.
And PRO SERIES Four-Axis Turret Slitting Rewinding Machine still be suitable for Labels and Adhesive sticker. Such as art paper labels,tire labels,pe/pp labels,etc.
Release Liners (Paper/ Film) and Label Stocks. Our range consists of Aluminum blister for pharmacy products, Aluminium pharma blisters, Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper, Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent) and Specialty Adhesive Tapes / Label stocks, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, PVDC film, petg film.
Uncoated papers & boards
Inkjet resin coated inkjet paper
Inkjet paper
Polyester pet film
1.Equipped 7 servo motors, to enable the machine slitting, rotating and rewinding accuracy.
2.Automatic loading, automatic knife cutting,4 shaft turret non-stop, all the automation boost the efficiency and reduce the labor force.
3.Dual-turret roll change non-stop for quick cycle time.
4.Shaftless unwind assure the loading safely and efficiently.
5.Laminating and peeling function can be selectable, Meet your production needs.
6.The machine operates at high speed, and the mechanical speed can reach 500m/min.
7.Automatic pushing for finished product.
Our Difference
PRO SERIES Four-Axis Turret Slitting Rewinding Machine is our latest innovation, owning the excellent performance:
1.Dual-turret roll change non-stop for quick cycle time.
2.Shaftless unwind assure the loading safely and efficiently
3.Laminating and peeling function can be selectable.
4.Automatic cutting, reduce set-up time.
5.Automatic push for labor-saving.
6.Pivot roll unloading device, rotates to safe unloading position.
Machine model | HCT4-1300 | HCT4-1600 |
Unwinding width | 1300MM | 1600mm |
Unwinding diameter | Φ1200mm | |
Max. Rewinding diameter | Φ600mm | |
Thickness range | 0.012-0.2mm | |
Max. Slitting speed(depend on material) | 500m/min | |
Min.Slitting width | 70mm | |
Traction power | 5.5kw | 7.5kw |
Rewinding power | 7.5kw*4 | |
Yes.
Yes. Exactly.
The HCT4 turret slitter could slitting PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material, etc.
And HCT4 still be suitable for Labels and Adhesive sticker.Such as art paper labels,tire labels, pe/pp labels, etc.
Yes, HCT4-1300/1600 could equip die cutting online.
Yes, Exactly. This machine has been specially treated.
Machine as usual is integrated and we do not dismantle before delivery.
So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.
Also, we provide service: our engineer and technician open live training until you learned it and run it well.
12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.
Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.
The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.
For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.
Any time you have question about slitter, we are always here to provide service.
Case sharing - machine running for global label company
