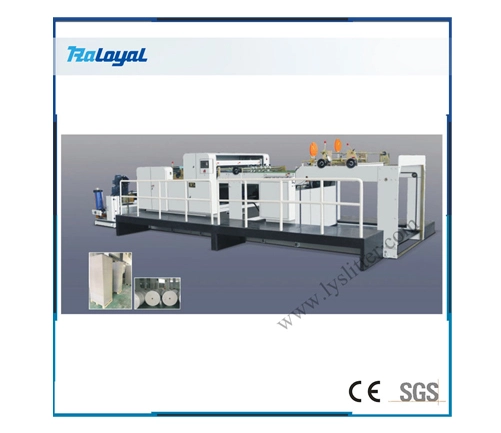

Paper Sheeting Machine
Paper Sheeting Machine
Paper Sheeting Machine

Paper Sheeting Machine

This automatic paper cutting machine is suitable for cutting all kinds of paper, which is an very ideal equipment for the jumbo roll paper cutting.

Get Quote Now
Application Technical Parameter Characteristic Video Support

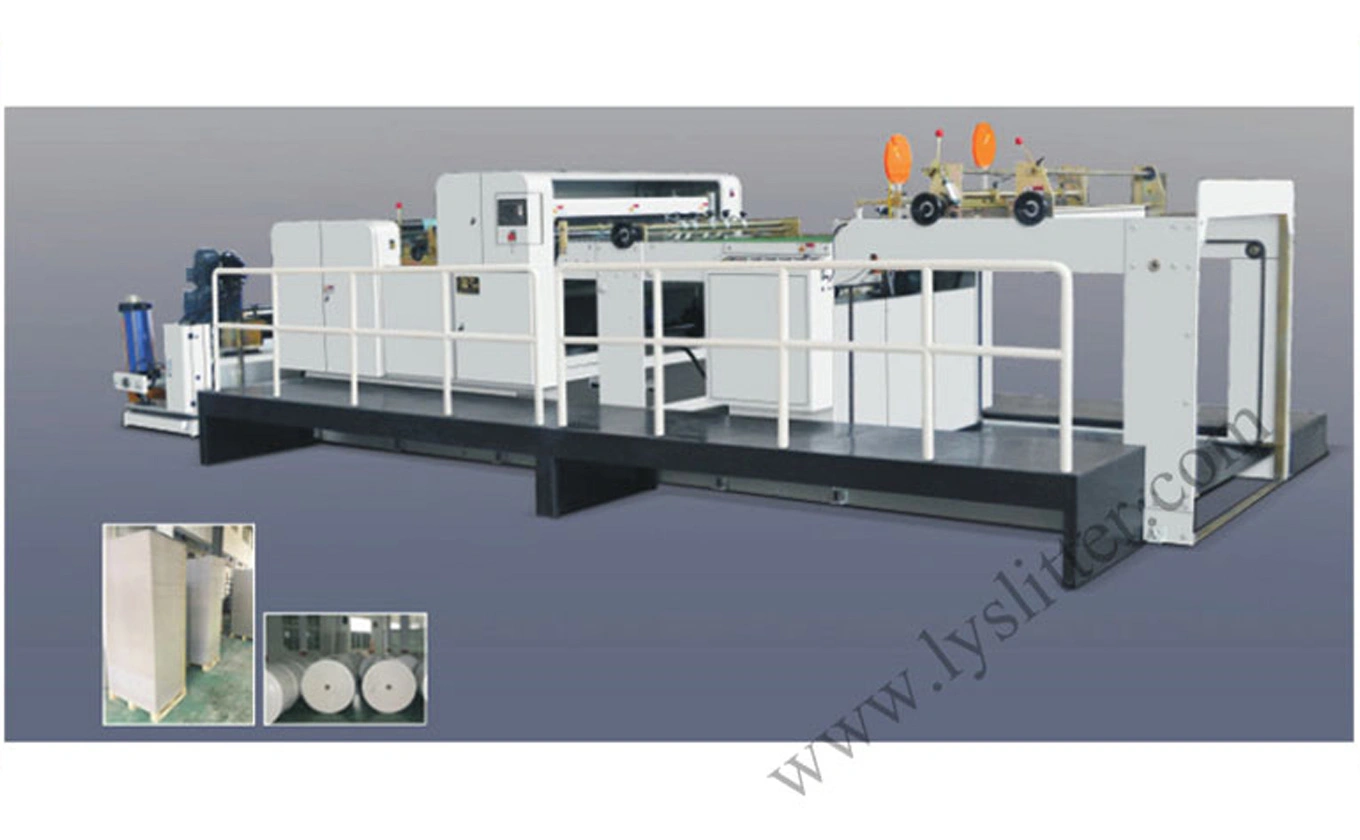

Application of Paper Sheeting Machine

This paper roll wrapping machine is suitable for cutting all kinds of paper, laminated material ,film etc jumbo roll cutting and stacking, which is an very ideal 2 rolls roll to sheet cutting machine for the jumbo roll paper cutting in china.

Technical Parameter of Paper Sheeting Machine

Technical parameter

1

Machine model

LY-C1100B

2

Max unwinding diameter

φ1400mm

3

Reference weight of cutting paper

70~500g

4

Max cut width

1100mm

5

Cutting length

400-1200mm

6

Cutting speed

10-150times/min

7

Cutting precision

±0.1mm

8

Total power

8.5kw

9

Machine weight

4800kg

10

Machine dimension

7000×1600×1850mm


Characteristic of Paper Sheeting Machine

Characteristic of Paper Sheeting Machine
  • PANASONIC PLC control, servo motor to control fixed length cutting.

  • The transmission system adopts centralized control such as pneumatic and photoelectric sensors.

  • This machine integrates light, electricity and gas, easy to operate, high cutting precision, mechanical stability, and low noise.

  • Motor frequency control, automatic counting, alarm stop, automatic adjustment of magnetic powder taper tension function.

  • This cigarettes tipper paper slitting machine is currently the ideal equipment for cutting large-scale coils with high quality in China.

  • 1.2M Paper Stacking function can be selected.


Video of Paper Sheeting Machine

How about Raloyal support?

Raloyal mission is :To creat and provide value to customers .

So as a enterprise with the strong sense of responsibility .

Raloyla can give the commiment to cusotmer :we provide not only 1 year gurantee ,but also lifelong service support .


The support included :Machine setup &trainning and the parts supply.


For the machine setup ,Customer have 2 ways to choose after receive the machine .

1: Raloyal provide the machine operation video ,drawing, manual etc to customer ,

Most customer have learned the operation well via these information.


2 : Raloyal arrange the service techincan to customer factory for machine set up and trainning .


No matter which way customer choose ,we can also creat a group (advised :wechat ),which will put service technican and the sales in ,in addition , the company CEO will also be there . which means when the operator have any doubt or question for the operation ,they can leave message to the group ,our service technician will reply it as soon as they saw it .


By the way ,we also upload the machine operation video in webiste ,the link path is  :

https://www.lyslitter.com/engineering/slitter-machine-operation-video/


For the parts supply ,Raloyal promisie we will provide customer the machine parts (Raloyal machine )  for lifelong time ,which means any time you need part ,we are here .

and provide the part at cost price .


Raloyal ,your loyal partner.
