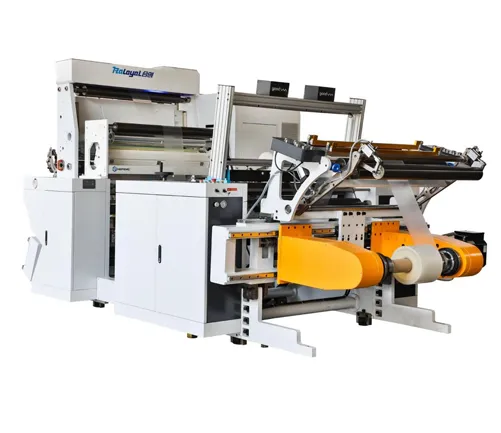

UseThe machine applies to rewind and inspect for cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper ...
| 1 | Machine model | HCHR-1300 |
| 2 | Jumbo roll width | 1300mm |
| 3 | Diameter of roll | Ø800mm |
| 4 | Diameter of rewinding | Ø800mm |
| 5 | paper core | 3"or 76mm(optional:6"or 152mm) |
| 6 | Slitting speed | 10-350m/min |
| 7 | Tolerance of EPC | ≤0.1mm |
| 8 | Min.width of slit | 400-1300mm |
| 9 | Total power | 12KW |
| 10 | Weight | 3500Kg |
| 11 | Overall dimension (L X W X H) | 2300mmX2900mmX2150mm |
On LABELEXPO ASIA 2023 in shanghai , Raloyal showcased machine is the 4 shaft turret slitter machine . the latest automation technology attracted most customers from different countries .
Mr Ko from Seal & Pack Co. Ltd is one among them .
One of supplier in the world for America airline .
They looked carefully and stepped into stand and asked many questions ...
On the Feb of 2024 ,after the Chinese New Year , we have concluded the 4 shaft turret slitter and after 4 months ,this machine finished ,Mr Ko with his technician team came and make FAT ,the result satisfies them .
After 3 months ,Mr KO expressed their another inquiry for their laminated material ( aluminium foil ,PE film ,foam etc ) ,thickness up to 0.2mm .
they want to inspect the material by rewinder machine ,also want have function :automatic label sticking if inspect defeats , want to also make corona treatment for materials during running ,and want us to install the inspection system on the machine .
Raloyal HCHR1200 Inspection Machine can meet Mr Ko inqiury very well ,based on the standard features ,we customized function for the automatic label sticking ,in addition ,the unwinder can work for both shaft-less and with shaft to meet their special need .
The machine finished within 2 months ,this set machine is used for one of sister company of Seal & Pack Co. Ltd . --YOUNGCHUN SEALTECH Co., LTD,
As last time ,they also dispatched team came to make FAT and also learn how to operate .
The machine FAT run video is here below for your further check .
Believe machine run well in YONGCHUN sealtech company ,
Because Mr Ko gave the 3rd order on the August of 2025 for the 2nd set inspection machine , this time machine have some update based on last set,

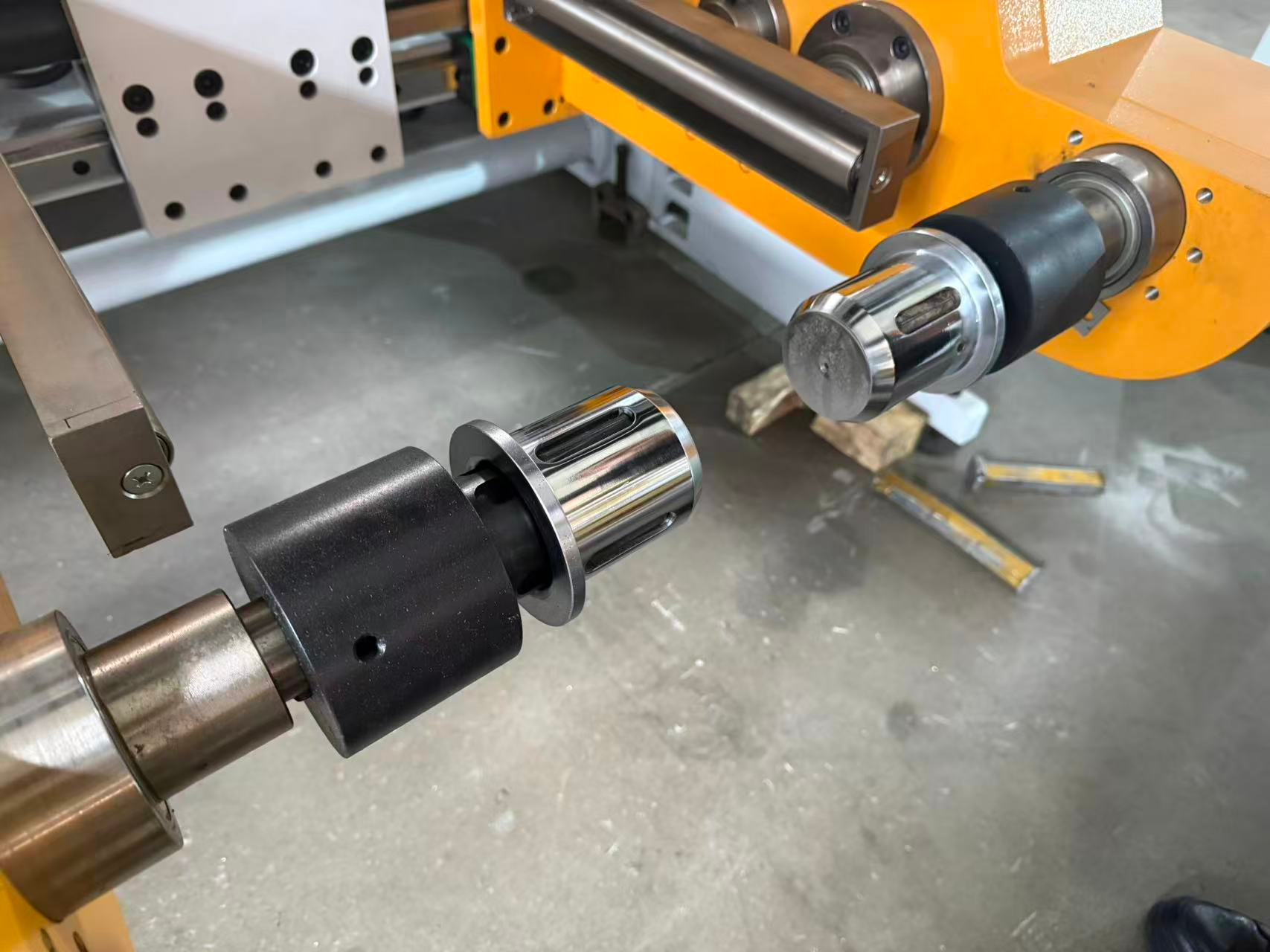

The unwinder structure upgraded for chuck ,this update advantage is only use one size layon roll can work for different web width , to save customer time and improve the efficiency .
Thanks for Mr Ko ‘s trust and support ,we will do more to beyond your expectation.
Raloyal ,your loyal partner .
The machine applies to rewind and inspect for cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials.,etc.
On LABELEXPO ASIA 2023 in shanghai , Raloyal showcased machine is the 4 shaft turret slitter machine . the latest automation technology attracted most customers from different countries .
Mr Ko from Seal & Pack Co. Ltd is one among them .
One of supplier in the world for America airline .
They looked carefully and stepped into stand and asked many questions ...
On the Feb of 2024 ,after the Chinese New Year , we have concluded the 4 shaft turret slitter and after 4 months ,this machine finished ,Mr Ko with his technician team came and make FAT ,the result satisfies them .
After 3 months ,Mr KO expressed their another inquiry for their laminated material ( aluminium foil ,PE film ,foam etc ) ,thickness up to 0.2mm .
they want to inspect the material by rewinder machine ,also want have function :automatic label sticking if inspect defeats , want to also make corona treatment for materials during running ,and want us to install the inspection system on the machine .
Raloyal HCHR1200 Inspection Machine can meet Mr Ko inqiury very well ,based on the standard features ,we customized function for the automatic label sticking ,in addition ,the unwinder can work for both shaft-less and with shaft to meet their special need .
The machine finished within 2 months ,this set machine is used for one of sister company of Seal & Pack Co. Ltd . --YOUNGCHUN SEALTECH Co., LTD,
As last time ,they also dispatched team came to make FAT and also learn how to operate .
The machine FAT run video is here below for your further check .
Believe machine run well in YONGCHUN sealtech company ,
Because Mr Ko gave the 3rd order on the August of 2025 for the 2nd set inspection machine , this time machine have some update based on last set,
The unwinder structure upgraded for chuck ,this update advantage is only use one size layon roll can work for different web width , to save customer time and improve the efficiency .
Thanks for Mr Ko ‘s trust and support ,we will do more to beyond your expectation.
Raloyal ,your loyal partner .
Raloyal mission is :To creat and provide value to customers .
So as a enterprise with the strong sense of responsibility .
Raloyla can give the commiment to cusotmer :we provide not only 1 year gurantee ,but also lifelong service support .
The support included :Machine setup &trainning and the parts supply.
For the machine setup ,Customer have 2 ways to choose after receive the machine .
1: Raloyal provide the machine operation video ,drawing, manual etc to customer ,
Most customer have learned the operation well via these information.
2 : Raloyal arrange the service techincan to customer factory for machine set up and trainning .
No matter which way customer choose ,we can also creat a group (advised :wechat ),which will put service technican and the sales in ,in addition , the company CEO will also be there . which means when the operator have any doubt or question for the operation ,they can leave message to the group ,our service technician will reply it as soon as they saw it .
By the way ,we also upload the machine operation video in webiste ,the link path is :
https://www.lyslitter.com/engineering/slitter-machine-operation-video/
For the parts supply ,Raloyal promisie we will provide customer the machine parts (Raloyal machine ) for lifelong time ,which means any time you need part ,we are here .
and provide the part at cost price .
Raloyal ,your loyal partner.
