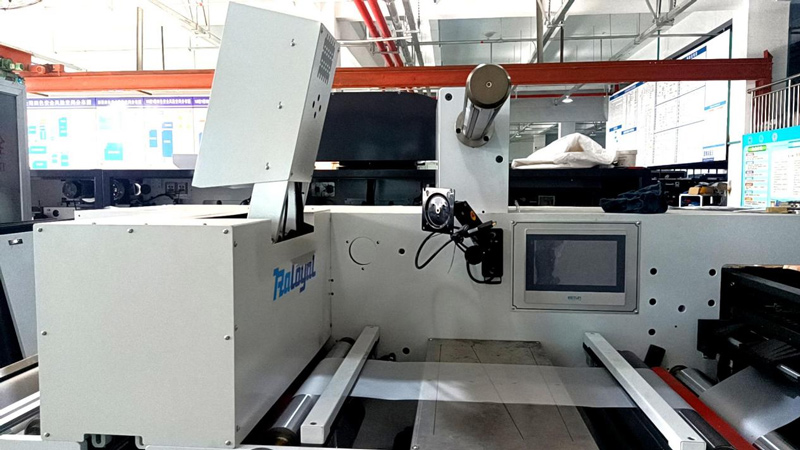

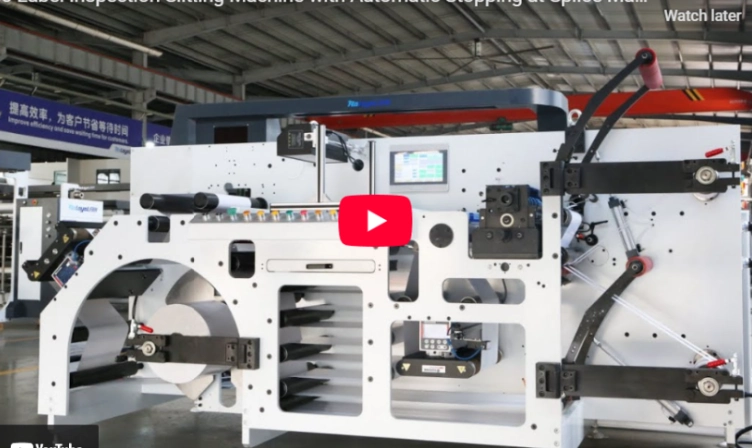

Developed by Ruian Loyal, high speed slitting inspection machine is for top high level market label.
Automatic slitting inspection machine still be suitable for Labels and Adhesive sticker. Such as art paper labels,tire labels,pe/pp labels,etc.
Release Liners (Paper/ Film) and Label Stocks. Our range consists of Aluminum blister for pharmacy products, Aluminium pharma blisters, Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper, Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent) and Specialty Adhesive Tapes / Label stocks, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, thermal cardboard, plain thermal transfer ribbon, semi-gloss label, destructive label, direct thermal paper.
Machine model | HCHR-370 |
Max paper width | 370mm |
Unwinding diameter | 700mm (27.5inches, unwinding shaft: 76mm) |
Min slitting width | 20mm (0.78inches) |
Max machine speed(depend on material) | 350m/min |
Turret rewinding diameter | 2*φ450mm (17.7inches, shaft size as required) |
Single shaft rewinding diameter | 700mm (27.5inches, rewinding shaft:76mm) |
Packaging dimension | 2720*1550*1490mm |
Packages weight | 1500kgs |

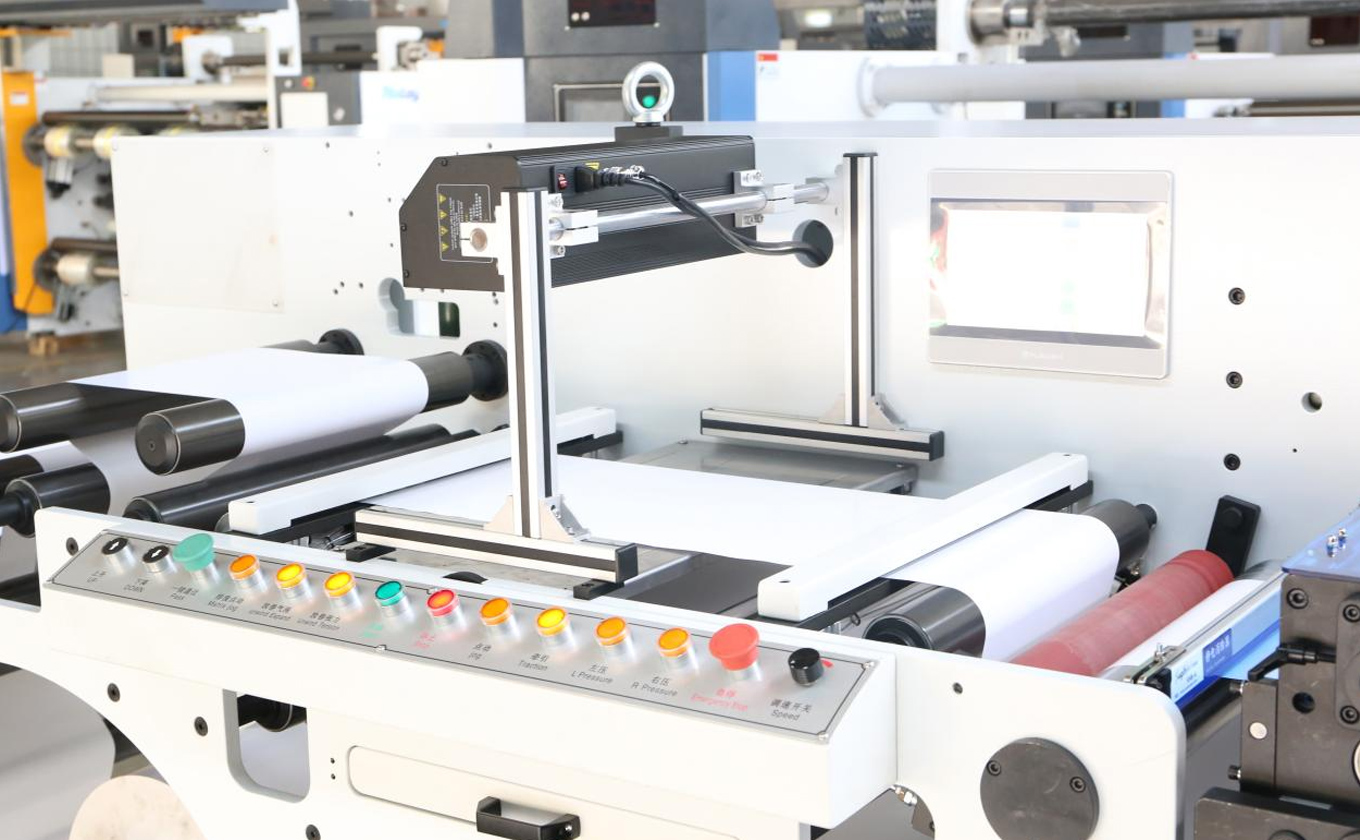

The high-speed slitting inspection machine developed by Ruian Loyal serves the premium market, catering to the needs of industries such as packaging, printing, electronics, by precisely slitting and inspecting materials like paper, film, label.
1. PLC control.

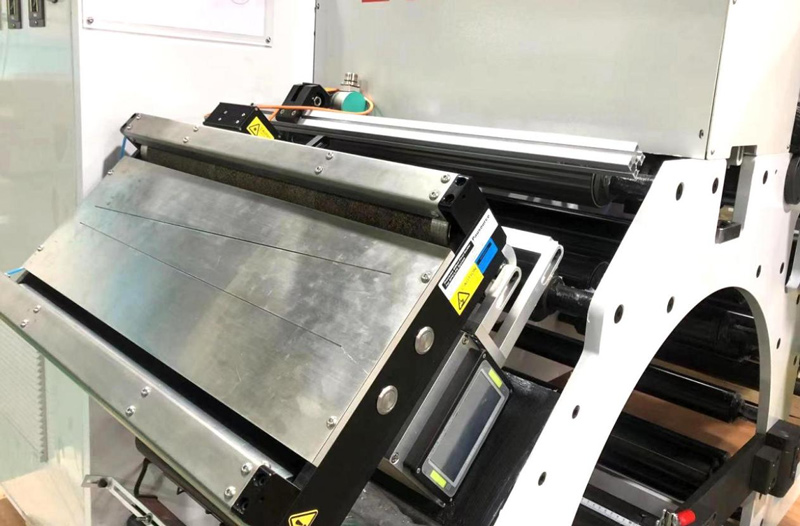

2. Splice table on the machine.
3. Servo driven system.
4. Taper tension control system

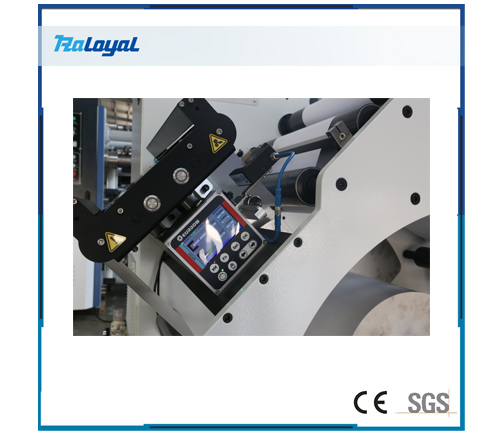

5. Top brand web guiding
6. Air shaft rewinding with turret, support variable size shafts exchange. (One of the shaft can be removed to rewinding bigger material)
7. Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit .

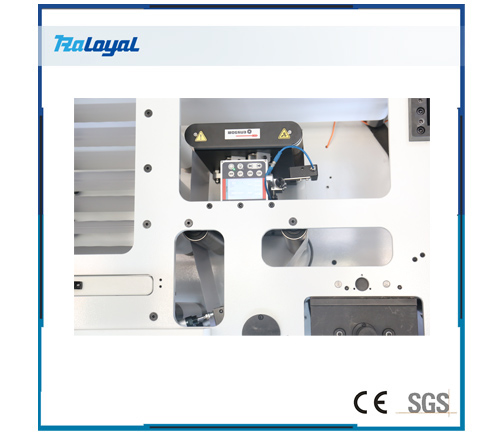

8. Web guide uses ultrasonic sensor.
9. Synchronous belt transmission, can assure the noise much smaller and keep machine running in high speed.
10. Meter and number counting,less material automatic down speed or stop.
Raloyal mission is :To creat and provide value to customers .
So as a enterprise with the strong sense of responsibility .
Raloyla can give the commiment to cusotmer :we provide not only 1 year gurantee ,but also lifelong service support .
The support included :Machine setup &trainning and the parts supply.
For the machine setup ,Customer have 2 ways to choose after receive the machine .
1: Raloyal provide the machine operation video ,drawing, manual etc to customer ,
Most customer have learned the operation well via these information.
2 : Raloyal arrange the service techincan to customer factory for machine set up and trainning .
No matter which way customer choose ,we can also creat a group (advised :wechat ),which will put service technican and the sales in ,in addition , the company CEO will also be there . which means when the operator have any doubt or question for the operation ,they can leave message to the group ,our service technician will reply it as soon as they saw it .
By the way ,we also upload the machine operation video in webiste ,the link path is :
https://www.lyslitter.com/engineering/slitter-machine-operation-video/
For the parts supply ,Raloyal promisie we will provide customer the machine parts (Raloyal machine ) for lifelong time ,which means any time you need part ,we are here .
and provide the part at cost price .
Raloyal ,your loyal partner.
