About 24225m.
Use Slitting thermal paper, bond paper, Cash register paper, Fax Paper, POS paper, ATM paper, and other small ribbon roll.

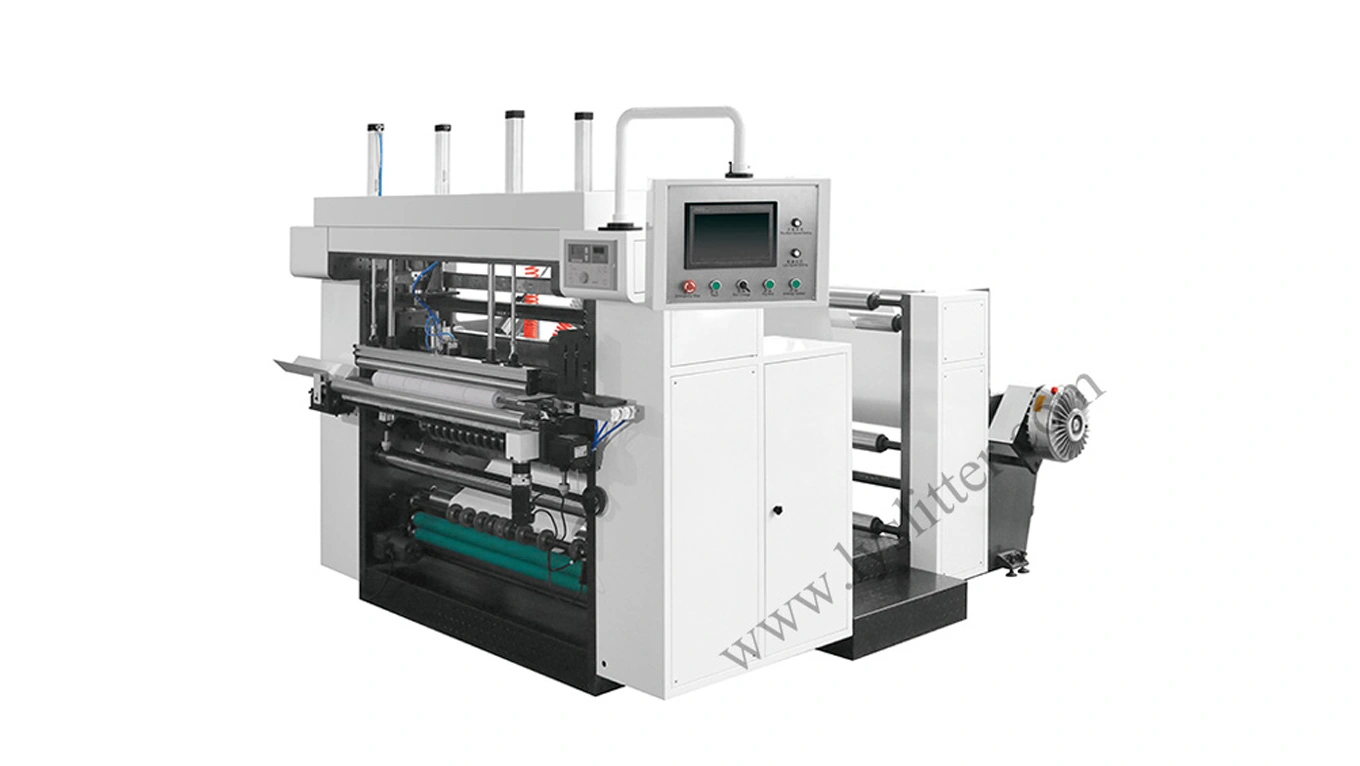

The High Grade Thermal Bill Paper slitting rewinding machine is mainly suitable for slitting all kinds of thermal paper, bond paper, Cash register paper, Fax Paper, POS paper, ATM paper, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, and other small ribbon roll.
Application industry:
On the basis of the end users/applications, major market share and growth for each application, including:
Point of sales (POS)
Automated teller machine (ATM)
Cash register
Credit card machine
Visa card machine
Mobile printer
Thermal printer
Adding machine
Swiping machine
Machine model | LY-FS900 | LY-FS1100 |
Unwinding diameter | 1150mm | 1150mm |
Unwinding width | 900mm | 1100mm |
Rewinding diameter | 80mm | 80mm |
Slitting width | ≧20mm | ≧20mm |
Rewinding core diameter | Φ10mm-25mm | Φ10mm-25mm |
Machine speed | 200m/min | 200m/min |
Power supply | 380V/50HZ/3.1KW | 380V/50HZ/3.1KW |
Machine weight | 2000kg | 2800kg |
Machine dimension | 2900*2150*1950mm | 2900*2350*1950mm |
Our Difference
Raloyal mission is :To creat and provide value to customers .
So as a enterprise with the strong sense of responsibility .
Raloyla can give the commiment to cusotmer :we provide not only 1 year gurantee ,but also lifelong service support .
The support included :Machine setup &trainning and the parts supply.
For the machine setup ,Customer have 2 ways to choose after receive the machine .
1: Raloyal provide the machine operation video ,drawing, manual etc to customer ,
Most customer have learned the operation well via these information.
2 : Raloyal arrange the service techincan to customer factory for machine set up and trainning .
No matter which way customer choose ,we can also creat a group (advised :wechat ),which will put service technican and the sales in ,in addition , the company CEO will also be there . which means when the operator have any doubt or question for the operation ,they can leave message to the group ,our service technician will reply it as soon as they saw it .
By the way ,we also upload the machine operation video in webiste ,the link path is :
https://www.lyslitter.com/engineering/slitter-machine-operation-video/
For the parts supply ,Raloyal promisie we will provide customer the machine parts (Raloyal machine ) for lifelong time ,which means any time you need part ,we are here .
and provide the part at cost price .
Raloyal ,your loyal partner.
About 24225m.
If 57mm*40m, it can produce 9080 pos rolls.
If 57mm*50m, it can produce 7260 pos rolls.
If 80mm*50m, it can produce 5330 pos rolls.
If 80mm*70m, it can produce 3806 pos rolls.
If 57mm (2 1/4″)*40m, 1 minute can produce 36 pos rolls
If 57mm (2 1/4″)*50m, 1 minute can produce 32 pos rolls
If 80mm (3 1/8″)*50m, 1 minute can produce 24 pos rolls
If 80mm (3 1/8″)*70m, 1 minute can produce 19 pos rolls
