This label press machine is the most ideal automatic die cutting machine for printing material, adhesive label, adhesive film slitting, and die cutting.
This type of die cutter is the most ideal machine for printing material, adhesive label, adhesive film slitting, and die cutting.
We do supply custom adhesive barcode blank label, preprinted label, color label, logo printed label, plain label, perforated label, die-cutting label, dot cutting label. Even we are also giving customized partial glue label or partial adhesive free label as per our customer needs. There are some types of label such as; direct thermal (no need thermal ribbon to print) label, thermal transfer label, semi-glossy label, offset label, matte label…etc. All types of labels are available with customization.
Application industry:
End Use:
Food
Beverage
Cosmetic & Personal Care
Pharmaceuticals
Automotive & Mechanical
Parts Packaging
Chemicals
Transportation
Others (Logistic, Entertainment, Security etc.)
Our Difference
printed material available
With semi-rotary, the machine doesn't need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed.
Advantage

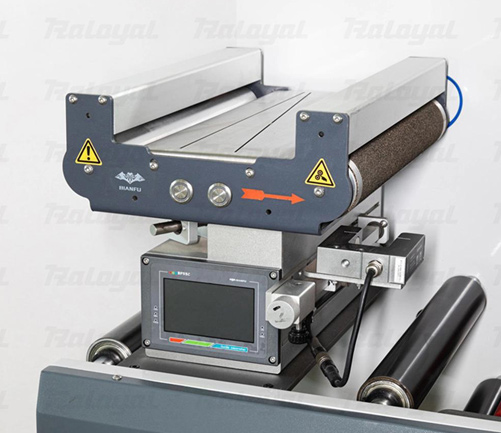

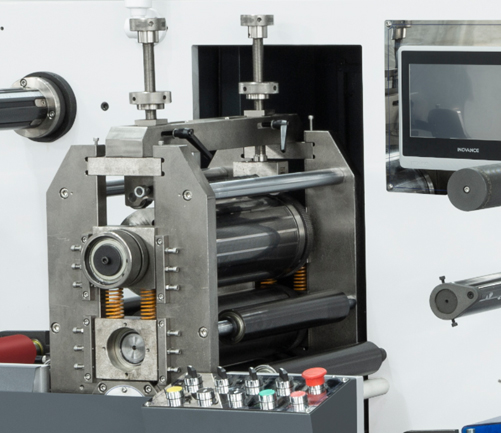

It equipped with Omron(Japan) motion control system, and register sensor to arrange high accurate rotary die-cutting system. This machine is applicable to pre-printed labels. Unwinder, rotary die-cutting, slitting and rewinding can be finished in one process. It can be run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the rotary die cutting machine doesn't need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The automatic feeder paper die cutting machine was equipped with USA web guiding to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
| Machine model | LY-RS350 | LY-RS450 |
| Slitting speed | 120m/min | 120m/min |
| Die cutting speed | 65m/min (intermittent) | 65m/min (intermittent) |
| 120m/min (full rotary) | 120m/min (full rotary) | |
| Max. web width | 350mm | 450mm |
| Max. unwinding diameter | 700mm | 700mm |
| Max. rewinding diameter | 700mm | 700mm |
| Die cutting length | 200-450mm (intermittent) | 200-450mm (intermittent) |
| 250-550mm (full rotary) | 250-550mm (full rotary) | |
| Voltage | 380V 3Phases, 50Hz | 380V 3Phases, 50Hz |
| Power | 12kw | 12kw |
